Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)
直銷價: .
The R420 is one of the most popular readers on the market. Designed for high performance and high efficiency, the self-optimizing Speedway Revolution R420 was created for anyone and everyone looking for high quality, high value, and high usability.

Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)Product code:R420 UHF

ELECTRICAL:

Air Interface Protocol:
GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
UHF 860 - 960 MHz, region dependent
Transmit Power (POE):
+10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power):
+10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity:
-84 dBm
Max Read Distance:
Not published
Max Read Rate:
Not published
Data Interface:
RS-232, ethernet
GPIO:
4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE):
IEEE 802.3af
Power Source (External DC Power):
Listed/Certified power supply, marked LPS or Class 2, with +24 VDC @ 800mA, rated minimum 2.5A
MECHANICAL:

Antenna Ports:
4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj Speedway Antenna Hub
Dimensions:
7.5 x 6.9 x 1.2 in (190.5 x 175.3 x 30.5 mm)
Weight:
1.5 lbs (680.3 g)
ENVIRONMENT:

IP Rating:
IP 52
Operating Temperature:
-20 ºC to +50 ºC
APPLICATION INTERFACE:

Host API:
.NET

歡迎至電 (852) 2398-1908或電郵 enquiry@insightHK.com 查詢及訂購

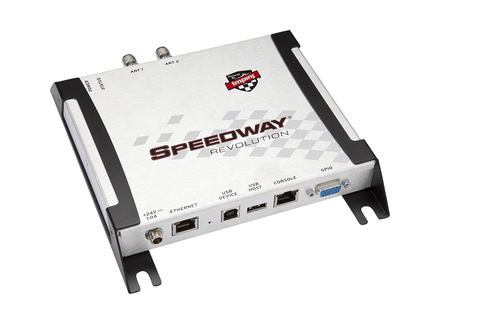

Impinj Speedway Revolution R220 UHF RFID Reader (2 Port)
直銷價: .
The R220 is one of the most popular readers on the market. Designed for high performance and high efficiency, the self-optimizing Speedway Revolution R220 was created for anyone and everyone looking for high quality, high value, and high usability.

Impinj Speedway Revolution R220 UHF RFID Reader (2 Port)Product code:R220 UHF

ELECTRICAL:

Air Interface Protocol:
GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
UHF 860- 960 MHz, region dependent
Transmit Power (POE):
+10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power):
+10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Read Sensitivity:
-84 dBm
Max Read Distance:
Not published
Max Read Rate:
Not published
Data Interface:
RS-232, ethernet
GPIO:
4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE):
IEEE 802.3af
Power Source (Power Adapter):
Listed/Certified power supply, marked LPS or Class 2, with +24 VDC @ 800mA, rated minimum 2.5A
MECHANICAL:

Antenna Ports:
2 RP-TNC female ports (connects to RP-TNC male), monostatic
Dimensions:
7.5 x 6.9 x 1.2 in (190.5 x 175.3 x 30.5 mm)
Weight:
1.5 lbs (680 g)
ENVIRONMENT:

IP Rating:
IP 52
Operating Temperature:
-20 ºC to +50 ºC
APPLICATION INTERFACE:

Host API:
.NET
Demo Software: MultiReader Software

歡迎至電 (852) 2398-1908或電郵 enquiry@insightHK.com 查詢及訂購
Impinj Speedway Revolution R420 UHF RFID Reader Evaluation Kit (4 Port)
直銷價: .
1 Impinj Speedway Revolution R420 UHF RFID Reader (4 Port) Unit
1 Far Field LHCP Antenna
1 Far Field RHCP Antenna
One Year Factory Warranty
Power Supply
Power Cord
Console Cable
Mini-Guardrail Antenna
6 ft Antenna Cable (LMR-195 RP-TNC Male to SMA

Impinj Speedway Revolution R420 UHF RFID Reader Evaluation Kit (4 Port)Product code:IPJ-DREV420

ELECTRICAL:

Air Interface Protocol:
GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
UHF 860 - 960 MHz, region dependent
Transmit Power (POE):
+10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power):
+10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity:
-84 dBm
Max Read Distance:
Not published
Max Read Rate:
Not published
Data Interface:
RS-232, ethernet
GPIO:
4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE):
IEEE 802.3af
Power Source (External DC Power):
Listed/Certified power supply, marked LPS or Class 2, with +24 VDC @ 800mA, rated minimum 2.5A
MECHANICAL:

Antenna Ports:
4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj Speedway Antenna Hub
Dimensions:
7.5 x 6.9 x 1.2 in (190.5 x 175.3 x 30.5 mm)
Weight:
1.5 lbs (680.3 g)
ENVIRONMENT:

IP Rating:
IP 52
Operating Temperature:
-20 ºC to +50 ºC
APPLICATION INTERFACE:

Host API: .Net

歡迎至電 (852) 2398-1908或電郵 enquiry@insightHK.com 查詢及訂購
